Leapion full enclosed protection cover fiber laser cutting machine 3KW 4KW Raycus fiber source

  • 1 - 2 Sets
    $45,000.00
  • 3 - 4 Sets
    $38,000.00
  • >=5 Sets
    $33,000.00
Model Number:
3015 4020 6015 6020 6025 8025
Power(W):
500W 750W 800W 1KW 1.5KW 2KW 3KW 3.3KW 4KW 6KW 8KW 10KW
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 15 20 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
1500*3000mm
Cutting Speed:
40m/min
Graphic Format Supported:
AI, PLT, DXF, BMP, DST, DWG, DXP
Application:
Laser Cutting
Applicable Industries:
Full Cover Fiber Laser 3kw metal cutting machine
Condition:
New
Cutting Thickness:
30MM
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Cypcut
Place of Origin:
Shandong, China
Brand Name:
Leapion
Certification:
CE, ISO, SGS
Warranty:
3 years
Laser Source Brand:
MAX
Key Selling Points:
High-accuracy
Product name:
Fiber Laser Metal Cutting Machine
Laser power:
500W / 1000W / 2000W / 3000W/4000W
Function:
Cutting Metal Materials
Laser source:
MAX IPG RAYCUS
Laser head:
Switzerland Raytools
Working area:
1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
Positioning Accuracy:
0.02mm
Guide rail:
Taiwan Hiwin 35mm Guide Rails
Location precision:
0.03 Mm
Support Graphic Format:
DSP PLT BMP DXF AL
Supply Ability
Supply Ability:
45 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Plywood package
Port
Qingdao Port, Tianjing Port, Ningbo Port, Shanghai Port, Guangzhou Port, Shenzhen Port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 15 20 30 To be negotiated
Video Description
PRODUCT DESCRIPTION

Leapion fiber laser cutting machine LF3015-PE use the world top brand parts,Raytools fiber laser head with automatic foucs and imported Japan Fuji or Japan Shimpo or Yaskawa servo motors and drives, high precision, high speed, large torque, performance is stable and durable, ensure the high speed operation of the whole machine.Chinese top brand fiber laser source Max, Raycus, IPG high power ,high precision.Top brand control system: Cypcut control system, with automatic nesting function.


360° full enclosed design and isolated work area completely isolate smoke and laser radiation. Safer, and minimized pollution.

Leapion laser, great laser !



3015 Enclosed Fiber Laser Cutting Machine Technical

Parameters

----------------------------------------------------------------

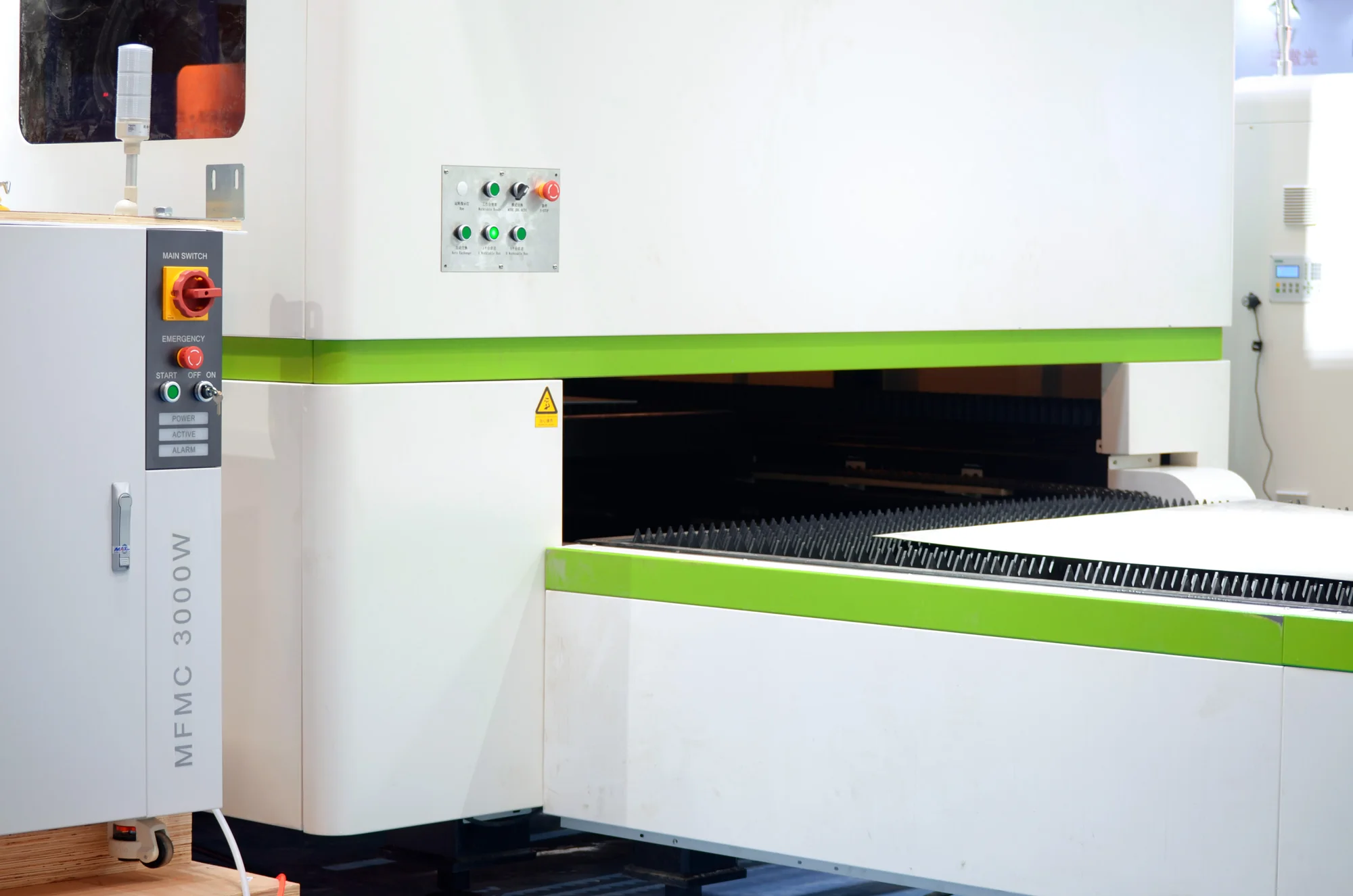

Appearance design:

Elegant curves and compact design make the operation easier

New green-white fully enclosed cover design and powerful exhaust system achieve zero pollution to the environment. The integrated 21.5 inch HD touch screen and machine body improves human-computer interact experience. Bigger Laser protective glasses make sure there is no harm to human eye. The striking bar-type warning system reminds machining status of the machine at any time. The operation is safer and more efficient. Meet the CE, ETL certification standards.


Application industry:

The equipment meets the parts processing requirements of most industries, working accuracy is stable. At present, laser cutting machines have been widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.


Moel No.
LF-3015PE
LF-4020SPE
LF-6020PE
Working Area
3000X1500mm
4000X2000mm
6000X2000mm
Laser output power
1000W / 1500W / 2000W / 3000W / 3300W / 4000W
Repeat Repositioning Accuracy
±0.03mm
Accuracy of Positioning
±0.02mm
Maximum Speed
100M/Min
Maximum Acceleration
1.0G
CERTIFICATIONS

The certifications of Leapion company.

MACHINE ADVANTAGE

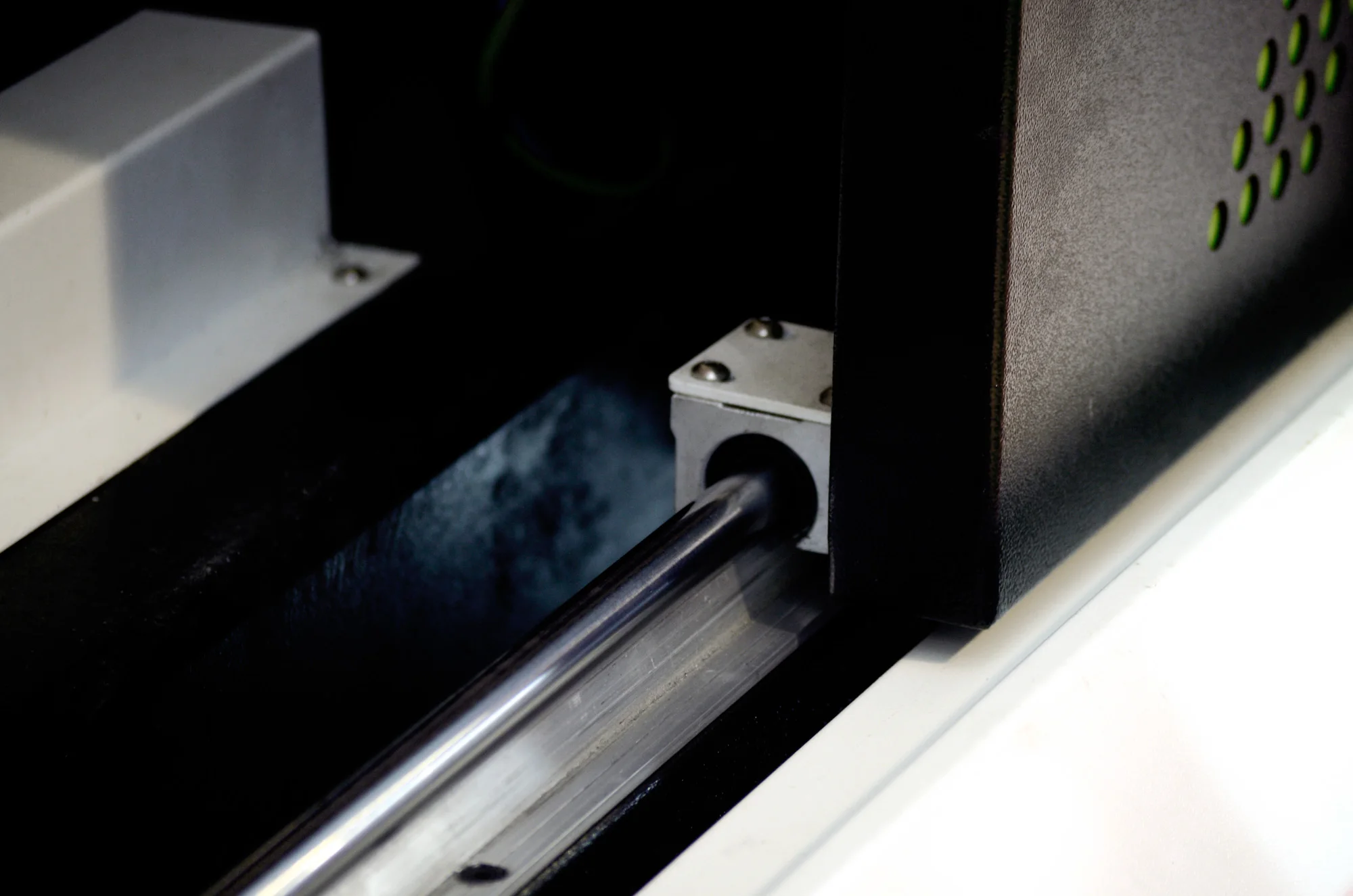

Fiber metal laser cutting machine adopts imported rail and heavy racks from Taiwan HIWIN, Japanese Fuji servo motor and driver and American laser mech laser head. All this parts match well with each other, machine's stability is great. Our this fiber not only can cut stainless steel, carbon steel, also can cut some high reflected materials, such as the aluminum and copper. Meet some customer ' s needs.





DETAIL IN KIND SHOOTING



CUTTING PARAMETER

The cutting ability of our fiber laser cutting machine are below :


We will give you 3 years warranty, so you don't have to worry about the after-sales .
We will also send you new parts if there's any parts broken by non-human issues.

SAMPLES

Our leapion high quality 3015 fiber laser cutting machine is usually used to cutting steel sheet or steel pipe, It can be used in the Aluminium, carbon steel and stainless steel.

SERVICE

CHOOSE US FOR OUR SUPERIOR QUALITY


  3 years guarantee of the whole machine and we give lifetime maintenance free of charge.

  Free training to make sure you master the operating of machine at our factory.

  24 hours online services through Whatsapp, Skype, Email or on the phone.

  Friendly English version manual and operation video CD disk.

  Contact me at any time if you have any questions about the machine.

Engineers available for overseas training and after-sale services.Our technical will come to your workshop if the problems can not be fixed through internet or phone communi-cations.

OUR COMPANY


Leapion in laser machine business since 2007, we are a global manufacturing company producing Laser engravers, laser markers,

CNC Router, UV inkjet printers for various applications such as signage, advertising, Woodworking furniture.
    Leapion Laser is becoming the word's TOP in the laser engraving, cutting and marking industry. We are innovators. We are problem solvers.

We are committed to designing and manufacturing the highest-quality laser systems and cnc router machine.
    Leapion original concept was to bring CO2 laser engraving systems to both commercial customers, small business owners and the home craftsman.

Over the years we developed larger, more powerful CO2 laser systems and fiber laser cutting and marking machine.


FAQ

Q:How to operate the machine ?

A: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.


Q:How can I get the sample to check you quality ?

A: If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.


Q:Does the machine can be customized according to my requirements ?

A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.


Q:Can you arrange the shipment for me ?

A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
