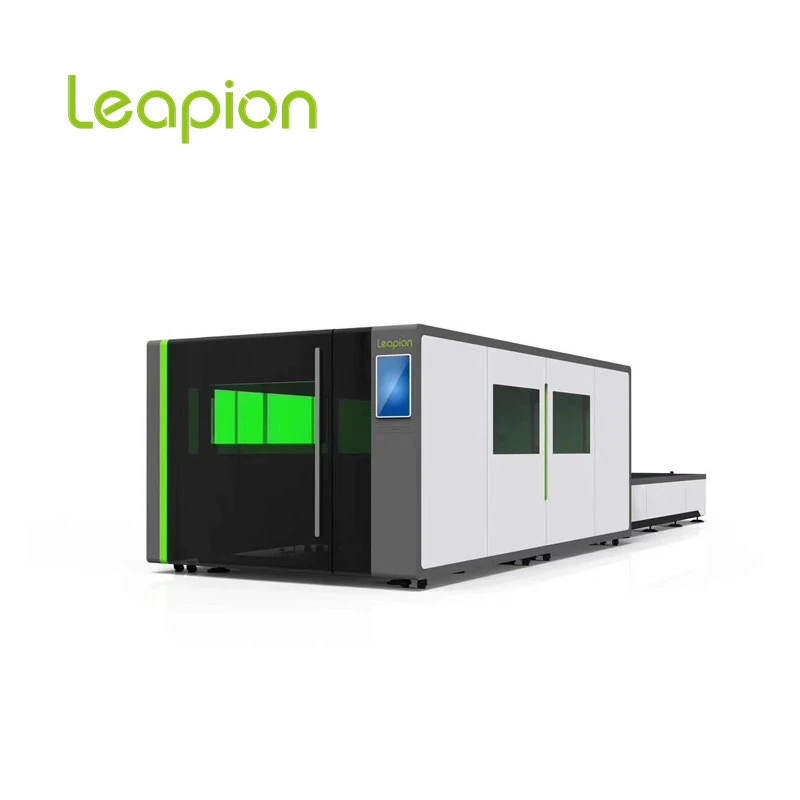

LF-3015PE enclosed fiber metal sheet laser cutting machine with high power

  • 1 - 4 Sets
    $74,950.00
  • >=5 Sets
    $61,350.00
Model Number:
LF-3015PE
Power(W):
1500W 2000W 2200W 3000W 4000W 6000w 8000W 10000W
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
3000*1500mm
Cutting Speed:
45m/min
Graphic Format Supported:
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Application:
Laser Cutting
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Printing Shops, Advertising Company
Condition:
New
Cutting Thickness:
25mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
cypcut/nc-studio
Place of Origin:
Shandong, China
Brand Name:
Leapion
Certification:
CE, ISO, SGS
Warranty:
3 years, Three Years
Laser Source Brand:
RAYCUS
Laser Head Brand:
Raytools
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN
Control System Brand:
Cypcut
Key Selling Points:
High Productivity
Product name:
Fiber Laser Metal Cutting Machine
Laser power:
500W / 1000W / 2000W / 3000W/4000W
Function:
Cutting Metal Materials
Working area:
1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
Cutting materials:
Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
Laser head:
Raytools
Driving system:
Servo Motor
Software supported:
CorelDraw.AutoCAD
Laser tube:
Raycus Fiber Laser Generator
Supply Ability
Supply Ability:
40 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood case/ Wooden box
Port
Qingdao/Shanghai/Tianjin
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated
Video Description
PRODUCT DESCRIPTION

Leapion fiber laser cutting machine LF-3015PE use the world top brand parts,Raytools fiber laser head ,the laser head can automatically focus, and imported Japan Yaskawa servo motors and drives, high precision, high speed, large torque, performance is stable and durable, ensure the high speed operation of the whole machine.Chinese top brand fiber laser source Max, high power ,high precision.Top brand control system : Cypcut control system, with automatic layout optimization.

Leapion laser, great laser !



3015 Fiber Metal  Laser Cutting Machine

Technical Parameters

----------------------------------------------------------------
Moel No.
LF-3013PE
LF-3015PE
LF-4020PE
Working Area
3000X1300mm
3000X1500mm
4000X2000mm
Laser output power
1000W / 1500W / 2000W / 3000W / 4000W /6000W / 8000W
Repeat Repositioning Accuracy
±0.03mm
Accuracy of Positioning
±0.02mm
Maximum Speed
80M/Min
Maximum Acceleration
0.8G~1.0G
CERTIFICATIONS

The certifications of Leapion company.

MACHINE ADVANTAGE

Fiber metal laser cutting machine adopts imported rail and heavy racks from Taiwan, Japanese Panasonic servo motor and driver and American laser mech laser head. All this parts match well with each other, machine's stability is great. Our this fiber not only can cut stainless steel, carbon steel, also can cut some high reflected materials, such as the aluminum and copper. Meet some customer ' s needs.





DETAIL IN KIND SHOOTING



CUTTING PARAMETER

The cutting ability of our fiber laser cutting machine are below :


SUPPORT FORMAT

The format that our software can support on the fiber laser cutting machine.


We will give you 3 years warranty, so you don't have to worry about the after-sales .
We will also send you new parts if there's any parts broken by non-human issues.

SAMPLES

Our leapion high quality 3015PE fiber laser cutting machine is usually used to cutting steel sheet or steel pipe, It can be used in the Aluminium, carbon steel and stainless steel.

MACHINE UPGRADES

You can also select these upgrades parts machine, to make your machine better.

Upgrade machine model

Upgrade fiber laser cutting machine to a high power model , leapion 3015PE model

Smoke purifier exhaust system

Removes dust and gas generated during laser processing

Different laser power

The power of each laser can be changed according to the specific cutting requirements. achieve the effect of multi-purpose.

OUR COMPANY


Leapion in laser machine business since 2007, we are a global manufacturing company producing Laser engravers, laser markers,

CNC Router, UV inkjet printers for various applications such as signage, advertising, Woodworking furniture.
    Leapion Laser is becoming the word's TOP in the laser engraving, cutting and marking industry. We are innovators. We are problem solvers.

We are committed to designing and manufacturing the highest-quality laser systems and cnc router machine.
    Leapion original concept was to bring CO2 laser engraving systems to both commercial customers, small business owners and the home craftsman.

Over the years we developed larger, more powerful CO2 laser systems and fiber laser cutting and marking machine.


SERVICE

CHOOSE US FOR OUR SUPERIOR QUALITY


  2 years guarantee of the whole machine and we give lifetime maintenance free of charge.

  Free training to make sure you master the operating of machine at our factory.

  24 hours online services through Whatsapp, Skype, Email or on the phone.

  Friendly English version manual and operation video CD disk.

  Contact me at any time if you have any questions about the machine.

Engineers available for overseas training and after-sale services.Our technical will come to your workshop if the problems can not be fixed through internet or phone communi-cations.

Plywood case:

FAQ

Q:How to operate the machine ?

A: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.


Q:How can I get the sample to check you quality ?

A: If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.


Q:Does the machine can be customized according to my requirements ?

A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.


Q:Can you arrange the shipment for me ?

A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
